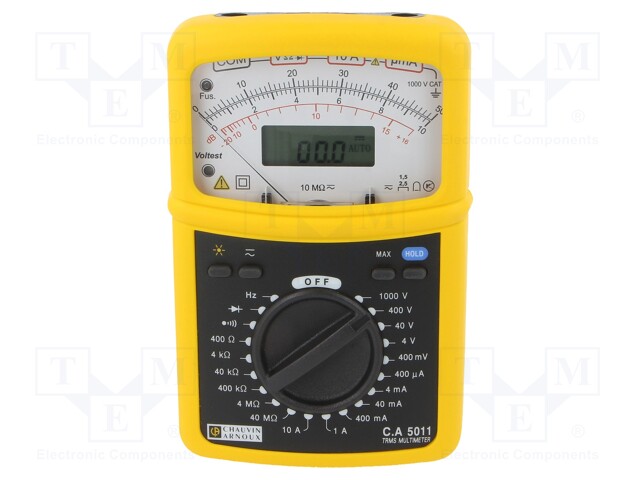

CA-5011; Analogue multimeter; analogue,LCD; (4000); 4kHz,40kHz,100kHz
Availability:
Out of stock
Short description here
฿890.00
Out of stock
|
Manufacturer
|
CHAUVIN ARNOUX | |
|
Type of meter
|
analogue multimeter | |
|
Kind of display used
|
analogue, LCD | |
|
Display parameters
|
(4000) | |
|
DC voltage measuring range
|
400mV/4V/40V/400V/1kV | |
|
DC voltage measuring accuracy
|
±(1% + 2 digit) | |
|
AC voltage measuring range
|
400mV/4V/40V/400V/1kV | |
|
AC voltage measuring accuracy
|
±(1.5% + 5 digit) | |
|
DC current measuring range
|
0.4mA/4mA/40mA/400mA/1A/10A | |
|
AC current measuring range(1) indirect measurement)
1) indirect measurement
|
0.4mA/4mA/40mA/400mA/1A/10A | |
|
DC current measuring accuracy
|
±(1.5% + 2 digit) | |
|
AC current measuring accuracy
|
±(2% + 5 digit) | |
|
Resistance measuring range
|
0.4kΩ/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | |
|
Resistance measuring accuracy
|
±(1%+2 digit) | |
|
Frequency measuring range
|
4kHz/40kHz/100kHz | |
|
Test
|
diodes | |
|
Continuity test
|
acoustic indication, <400Ω | |
|
Measurement
|
AC current, AC voltage, DC current, DC voltage, resistance | |
|
Conform to the norm
|
CAT III 600V EN 61010 |
|
|
Body dimensions
|
56x105x160mm | |
|
IP rating
|
IP53 | |
|
True effective value measurement
|
True RMS | |
|
Illumination
|
yes |
