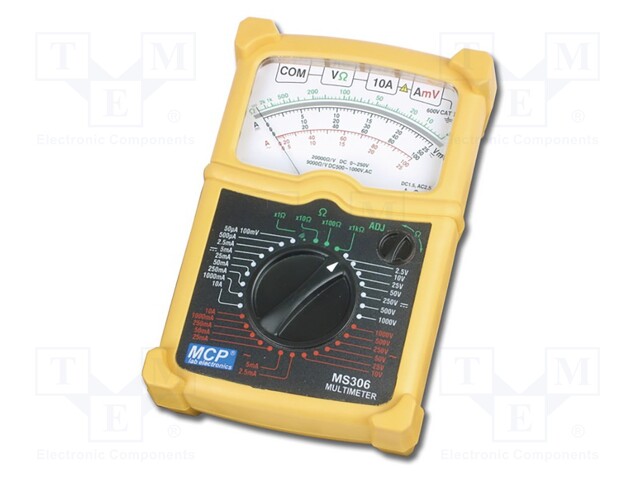

MS306; Analogue multimeter; analogue; VDC accuracy: ±1.5%; 170x165x55mm
Availability:
Out of stock
Short description here
฿890.00
Out of stock
|
Manufacturer
|
MCP | |
|
Type of meter
|
analogue multimeter | |
|
Kind of display used
|
analogue | |
|
DC voltage measuring range
|
100mV/2.5V/10V/25V/50V/250V/500V/1kV | |
|
DC voltage measuring accuracy
|
±1.5% | |
|
AC voltage measuring range
|
10V/25V/50V/250V/500V/1kV | |
|
AC voltage measuring accuracy
|
±2.5% | |
|
DC current measuring range
|
50µA/0.5mA/2.5mA/5mA/25mA/50mA/250mA/1A/10A | |
|
AC current measuring range(1) indirect measurement)
1) indirect measurement
|
2.5mA/5mA/25mA/50mA/250mA/1A/10A | |
|
DC current measuring accuracy
|
±1.5% | |
|
AC current measuring accuracy
|
±2.5% | |
|
Resistance measuring range
|
1Ω/10Ω/100Ω/1kΩ | |
|
Resistance measuring accuracy
|
±10% | |
|
Continuity test
|
acoustic indication, <50Ω | |
|
Standard equipment
|
test leads ( 2pcs.) | |
|
Measurement
|
AC current, AC voltage, continuity, DC current, DC voltage, resistance | |
|
Conform to the norm
|
CAT III 600V EN 61010 |
|
|
Dimensions
|
170x165x55mm | |
|
Operating frequency
|
20…400Hz | |
|
Related items
|
MS30X/FUSE-1A, MS30X/FUSE-10A |
