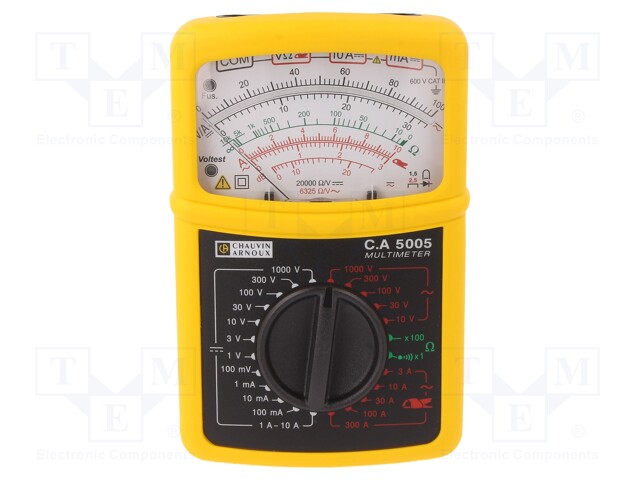

CA-5005-MN89; Analogue multimeter; VDC: 100mV,1V,3V,10V,30V,100V,300V,1kV
Availability:
Out of stock
Short description here
฿890.00
Out of stock
|
Manufacturer
|
CHAUVIN ARNOUX | |
|
Type of meter
|
analogue multimeter | |
|
DC voltage measuring range
|
100mV/1V/3V/10V/30V/100V/300V/1kV | |
|
DC voltage measuring accuracy
|
±1.5% | |
|
AC voltage measuring range
|
10V/30V/100V/300V/1kV | |
|
AC voltage measuring accuracy
|
±2.5% | |
|
DC current measuring range
|
50µA/1mA/10mA/100mA/1A/10A | |
|
AC current measuring range(1) indirect measurement)
1) indirect measurement
|
3A/10A/30A/100A/240A | |
|
DC current measuring accuracy
|
±2.5% | |
|
AC current measuring accuracy
|
±2.5% | |
|
Resistance measuring range
|
5…1MΩ | |
|
Resistance measuring accuracy
|
±10% | |
|
Continuity test
|
acoustic indication, <50Ω | |
|
Input impedance for DC voltage measurement
|
20kΩ/V | |
|
Input impedance for AC voltage
|
6.32kΩ/V | |
|
Measurement
|
AC current (with current clamps), AC voltage, DC current, DC voltage, resistance | |
|
Conform to the norm
|
CAT III 600V EN 61010 |
|
|
Body dimensions
|
56x105x160mm | |
|
IP rating
|
IP53 |
